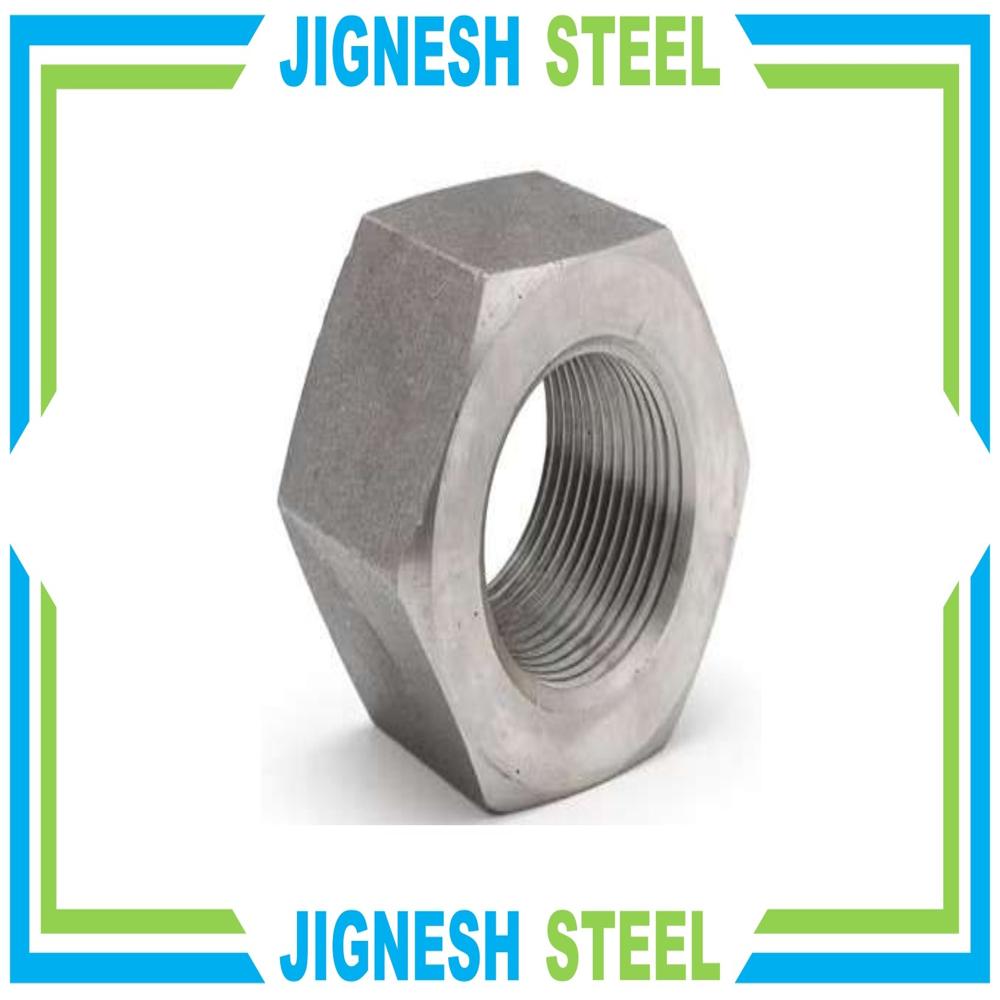

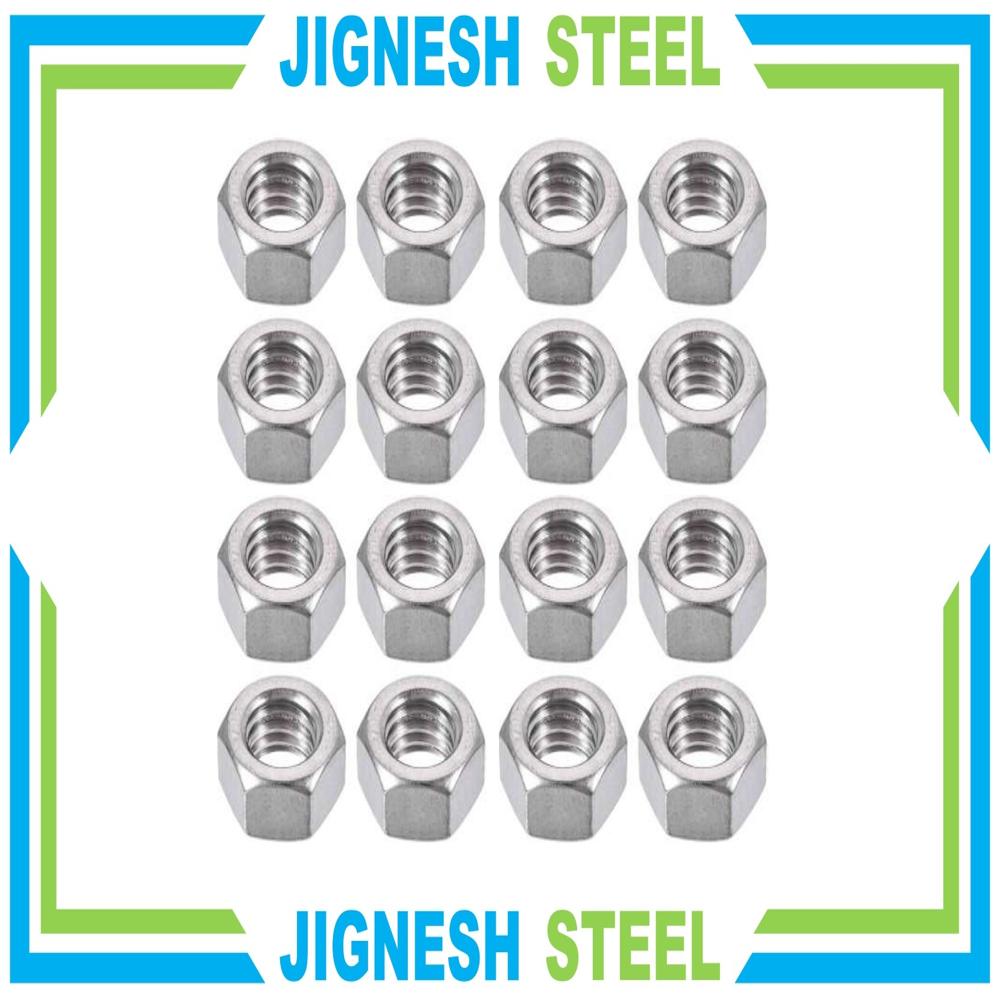

ASME B18.2.2 Heavy Hex Nut

About ASME B18.2.2 Heavy Hex Nut

The Stainless Steel ASME B18.2.1 Heavy Hex Nut (commonly mislabeled under B18.2.1, but officially governed dimensionally by ASME B18.2.2) is a high-strength, inch-series imperial fastener designed with a significantly wider profile and thicker height than a standard hex nut. By providing an expanded bearing surface area, it distributes heavy clamping forces over a larger footprint. This design makes it the global industry standard for securing high-pressure piping flanges, structural steel joints, and heavy industrial vessel assemblies.

Key Features & Design

         Heavy Hex Profile: The oversized six-sided body delivers a wider bearing surface that prevents the nut from crushing or sinking into structural flanges under extreme tightening torque.

         Increased Nut Height: Features a thicker height than standard finished hex nuts. This allows for deeper internal thread engagement with the bolt, drastically reducing the risk of thread stripping or shearing under high tension.

         Unified Inch Threading: Machined with precision Unified National Coarse (UNC) or Unified National Fine (UNF) threads, utilizing a standard Class 2B fit tolerance.

         Corrosion-Resistant Integrity: Forged from solid stainless steel alloys, eliminating the threat of surface peeling, flaking, or structural failure caused by atmospheric rust.

Material Grades & Specifications

Stainless steel heavy hex nuts are commonly manufactured to meet specific ASTM mechanical properties alongside their dimensional ASME standard:

         18-8 / Grade 304 Stainless Steel: The most common commercial tier. Composed of 18% Chromium and 8% Nickel, it offers excellent cost-effective protection against standard moisture, chemical exposures, and outdoor elements.

         Grade 316 Stainless Steel: The premium marine-grade choice. Fortified with Molybdenum, it prevents pitting, crevice cracking, and localized failure in harsh chloride, acidic, and saltwater applications.

         ASTM Specification Standards: Often paired with high-temperature/high-pressure material designations like ASTM A194 Grade 8 (for 304 stainless) or ASTM A194 Grade 8M (for 316 stainless), which are heavily specified in pressure vessel and oil/gas piping codes.

Standard Dimensional Overview

Unlike metric fasteners, ASME B18.2.2 uses fractional inch profiles. The heavy hex configuration demands a larger Width Across Flats (WAF / wrench size) than standard hex nuts:

         Nominal Size 1/2": Heavy Hex features a 7/8" WAF (compared to a standard finished hex nut's 3/4" WAF) and a thickness of 31/64".

         Nominal Size 5/8": Heavy Hex features a 1-1/16" WAF (compared to a standard finished hex nut's 15/16" WAF) and a thickness of 39/64".

         Nominal Size 3/4": Heavy Hex features a 1-1/4" WAF (compared to a standard finished hex nut's 1-1/8" WAF) and a thickness of 47/64".

         Nominal Size 1": Heavy Hex features a 1-5/8" WAF (compared to a standard finished hex nut's 1-1/2" WAF) and a thickness of 63/64".

Target Applications & Industries

         Oil, Gas, & Petrochemical: Securing high-pressure pipeline flanges, valve manifolds, and petrochemical processing vessels.

         Structural Steel Construction: Erecting heavy industrial frames, overhead crane tracks, bridges, and building foundations.

         Marine Infrastructure: Assembling ship structures, seaside docks, and offshore drilling platforms exposed to continuous salt spray.

         Power Generation & Utilities: Fastening steam lines, heat exchangers, and heavy industrial pump brackets where structural lifespan is critical.
