ASTM A193

ASTM A193 About

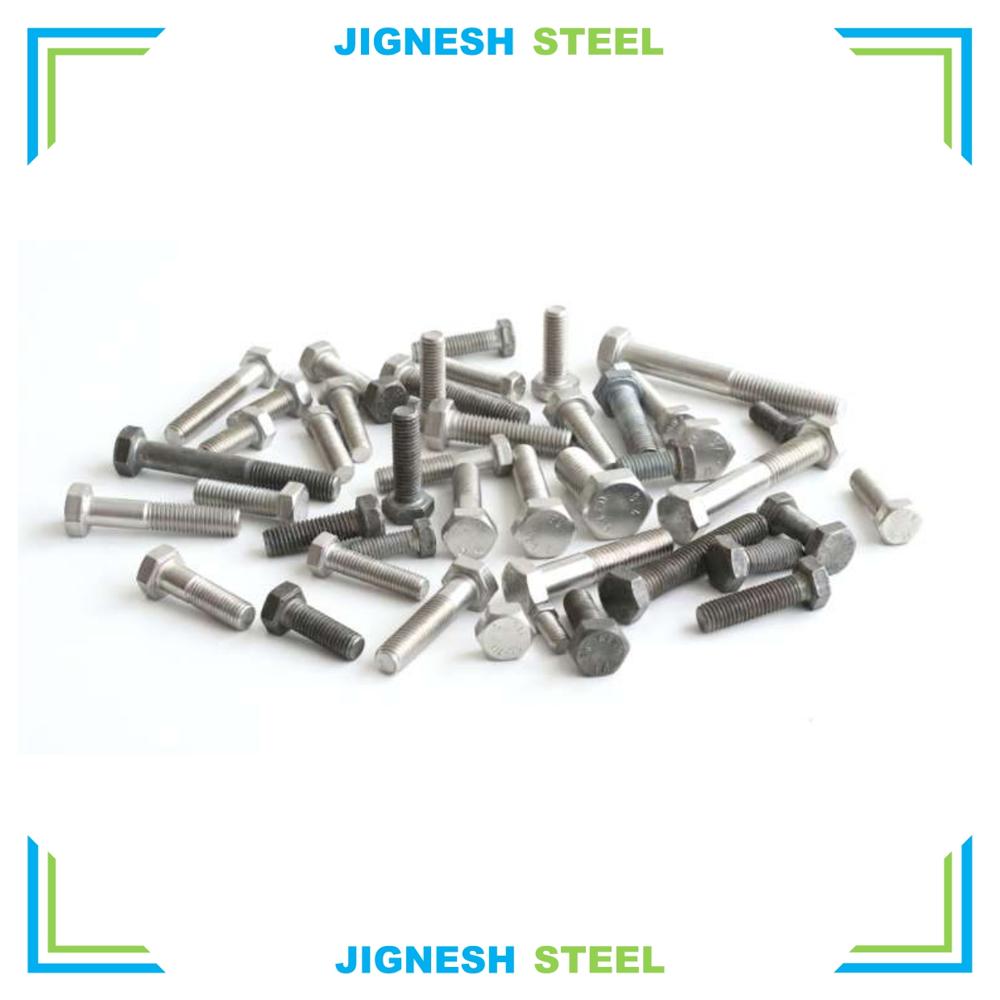

ASTM A193 is a globally recognized standard specification covering high-tensile alloy steel and stainless steel bolting materials tailored for high-temperature, high-pressure service and other special-purpose applications. Heavily utilized in pressure vessels, valves, flanges, and piping systems, these fasteners maintain mechanical integrity in extreme environments.

Below is an overview of the key specifications, grades, and applications for ASTM A193 fasteners:

Key Engineering Grades

Fasteners under this standard are split into two major material categories: ferritic alloy steels and austenitic stainless steels.

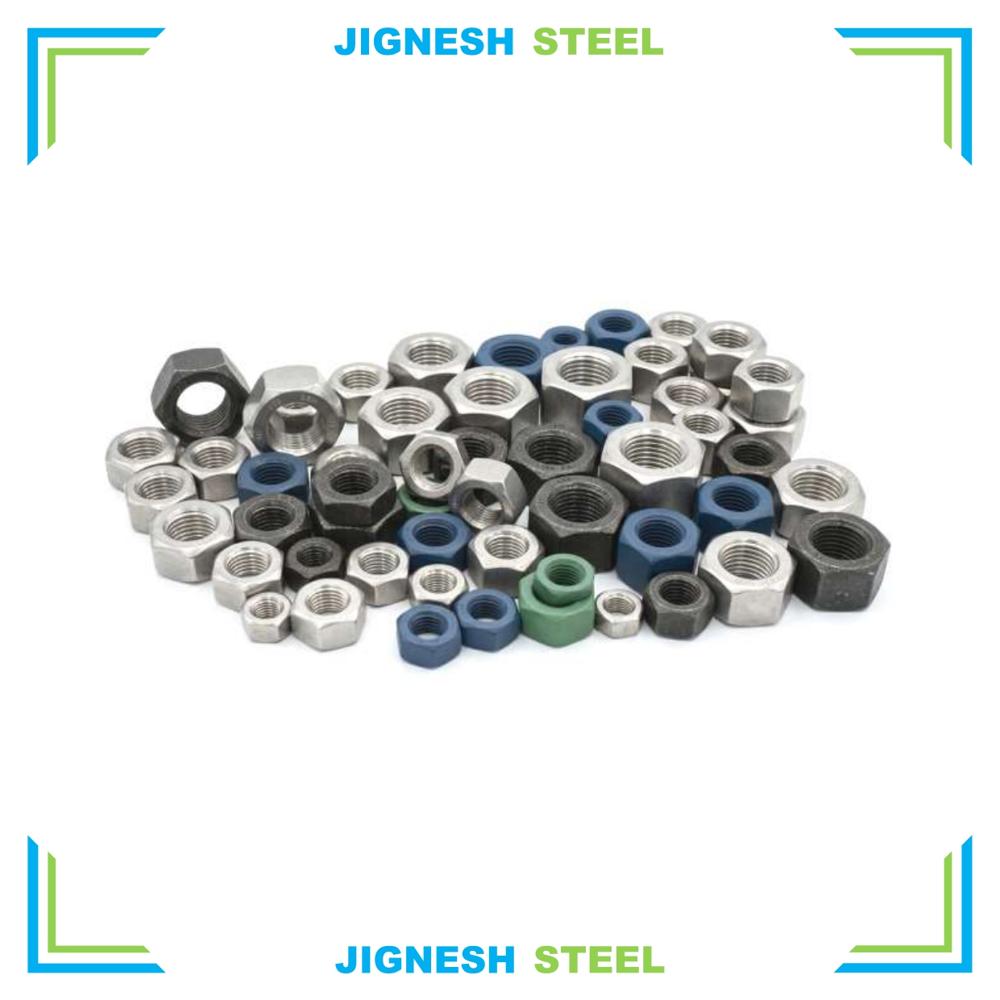

• Grade B7 (Alloy Steel): The most widely used grade under this specification. Made from chromium-molybdenum low-alloy steel (such as AISI 4140) that has been quenched and tempered. It features a minimum tensile strength of 125 ksi and is frequently paired with ASTM A194 Grade 2H heavy hex nuts to bolt carbon steel pipelines.

• Grade B8 & B8M (Stainless Steel):

• B8 uses AISI 304 stainless steel.

• B8M incorporates AISI 316 stainless steel with added molybdenum, providing enhanced resistance against crevice corrosion and pitting in harsh environments.

• Both are typically solution treated for high oxidation and corrosion resistance.

• Grade B16 (Chrome-Moly-Vanadium): Explicitly engineered for ultra-high-temperature environments where standard low-alloy steels might suffer from mechanical creep.

• Grade B5 & B6 (Martensitic Stainless): Formulated with 12% to 13% chromium steel (such as AISI 410) to offer heavy-duty structural capabilities combined with good scaling resistance under heat.

Fastener Formats and Thread Configurations

• Configurations: Fasteners are most commonly specified and manufactured as fully threaded stud bolts or heavy hex bolts, but the standard also allows for custom bent bolts and double-ended rods.

• Thread Series: While national coarse (UNC) thread pitches are standard for small diameters, traditional high-pressure applications typically require a fixed 8 threads per inch (8 TPI) specification for any bolt diameter exceeding 1 inch.

Primary Industry Applications

Because of their structural resilience at extreme temperatures, ASTM A193 bolts are vital components in:

• Petrochemical & Oil Refining: Used across pipelines, heat exchangers, and drilling setups.

• Power Generation: Critical for steam lines, nuclear systems, and high-pressure boiler attachments.

• Chemical & Gas Processing: Essential for keeping industrial valve flanges and pressure vessels securely sealed against volatile chemical reagents.
