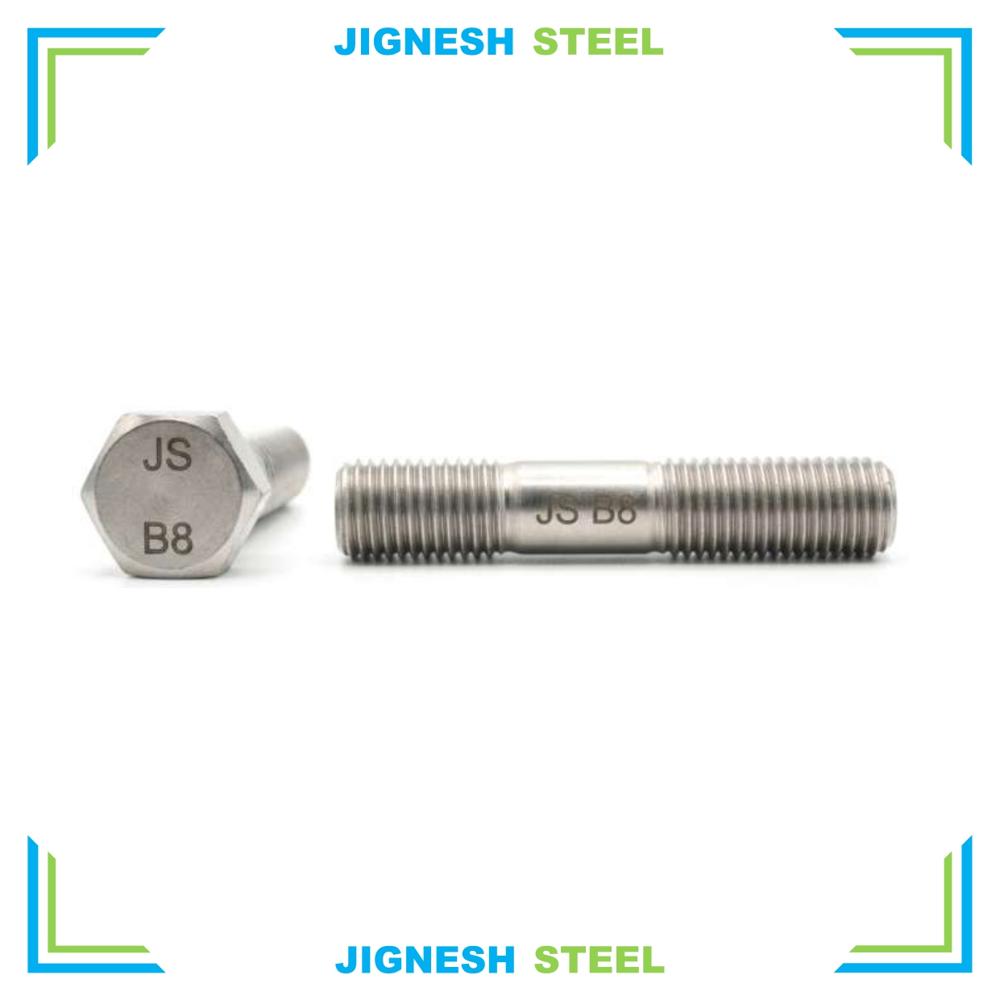

SA193 Gr. B8 Bolts

SA193 Gr. B8 Bolts About

• ASME SA193 Grade B8 Bolts are premium, high-strength fasteners manufactured from AISI 304 austenitic stainless steel, specifically design-certified under the ASME Boiler and Pressure Vessel Code (BPVC). They are engineered to sustain structural integrity in high-pressure, high-temperature (up to 593C / 1100F), and extreme cryogenic industrial settings.

• The "SA" prefix signifies that these fasteners comply with ASME's rigorous boiler and pressure safety codes, making them a globally mandated choice for code-stamped equipment.

Common Product Forms & Profiles

• Heavy Hex Bolts Built with wider flat-to-flat dimensions to distribute heavy clamping loads across flanges.

• Continuous Threaded Studs Fully threaded rods utilized with two matching nuts for high-stress piping junctions.

• Socket Head Cap Screws (Allen Bolts) Cylindrical heads with internal hex drives for tight, low-clearance spaces.

• Double-End & Tap-End Studs Threaded strictly on the ends to pass through flanges or clear obstructions.

Technical Specifications Matrix

Class Classifications & Mechanical Limits

• SA193 Gr. B8 product performance is deeply determined by the post-forming heat treatment process, dividing bolts into two distinct functional classes:

• Class 1: Carbide Solution Annealed

• Manufacturing: Fasteners undergo intense heating followed by a rapid water quench to optimize baseline chemical resistance.

• Tensile Strength: 75 ksi (515 MPa) minimum limit.

• Yield Strength: 30 ksi (205 MPa) minimum limit.

• Hardness: 223 HBW maximum.

• Best For: High-temperature piping loops where thermal expansion requires material ductility over raw tensile capacity.

• Class 2: Carbide Solution Annealed & Strain Hardened

• Manufacturing: Plastically deformed and work-hardened post-annealing to radically compress the crystalline boundary.

• Tensile Strength: Up to 125 ksi (860 MPa) minimum limit.

• Yield Strength: Up to 100 ksi (690 MPa) minimum limit.

• Hardness: 321 HBW maximum.

• Best For: High-torque assemblies; work-hardening effectively eliminates the threat of thread galling.

Core Industrial Applications

• Because SA193 Gr. B8 bolts offer high-temperature and structural reliability, leading technical authorities like Jignesh Steel highlight their role in:

• Petrochemical & Refinery Systems: Securing critical flange paths on processing lines.

• Pressure Vessel Construction: Meeting strict safety mandates for code-stamped tanks and boilers.

• Cryogenic Gas Storage: Remaining strong and shock-absorbent at sub-zero temperatures.

• Marine & Off-Shore Hardware: Resisting ambient moisture and atmospheric oxidation.
