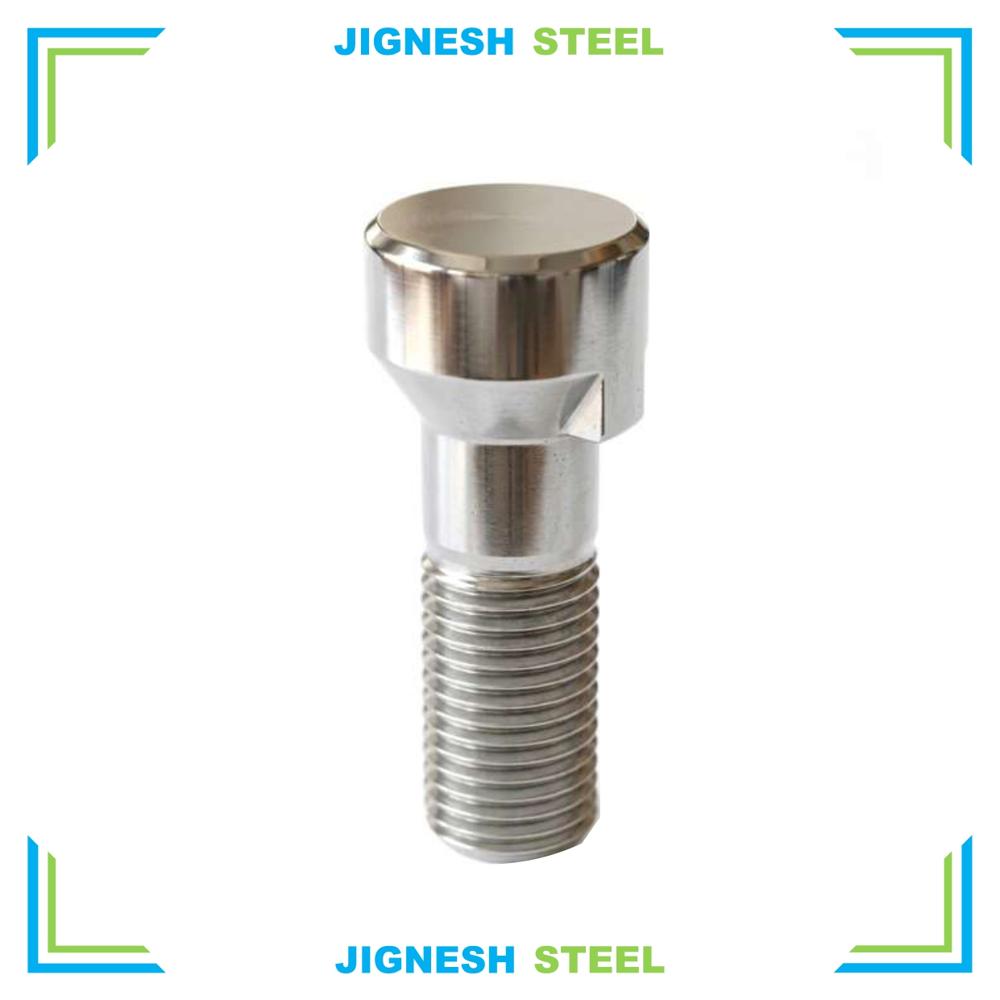

DIN 792 Cylindrical Countersunk Screws
DIN 792 Cylindrical Countersunk Screws

DIN 792 Cylindrical Countersunk Screws

DIN 792 Cylindrical Countersunk Screws Specification

  • Corrosion Resistant
  • Yes
  • Head Type
  • Cylindrical Countersunk
  • Drive Type
  • Hex
  • Shape
  • Cylindrical Countersunk
  • Grade
  • A2-50, A2-80, A4-50, A4-80, SS 202, SS 301, SS 302, SS 303, SS 303Se, SS 304H, SS 304N, SS 310, SS 310S, SS 310H, SS 316H, SS 316LN, SS 317, SS 317L, SS 321H, SS 347H, SS 416, SS 430, SS 431, SS 440C, SS 904L, Alloy 20, Bumax 88, Bumax 109, Nitronic 50, Nitronic 60, ASTM A193 B8 Class 1, ASTM A193 B8 Class 2, ASTM A193 B8M Class 1, ASTM A193 B8M Class 2, ASTM A320 B8, ASTM A320 B8M, ASTM A193 B6, XM-19, UNS S31254 (6-Moly)
  • Standard
  • DIN 792
  • Thread Type
  • Metric
  • Finish
  • Buffed, Polished
  • Surface Treatment
  • Polishing
  • Fasteners Type
  • Bolts
  • Material
  • Stainless Steel
  • Color
  • Self Finish



DIN 792 Cylindrical Countersunk Screws About

DIN 792 cylindrical countersunk screws are highly specialized, anti-corrosive fasteners engineered for heavy-duty structural applications. Combining a flat, deep cylindrical head with a tapered countersunk neck, they sit completely flush within pre-machined mating parts. They feature an integrated, precision-machined locking nib (or tenon) directly beneath the head profile, allowing the bolt to securely self-lock into a matching keyway or mortise to prevent rotation during high-torque tightening.



Key features



  • Superior corrosion resistance: Forged from premium austenitic stainless steel, making them completely rust-free and optimal for marine, chemical, and outdoor industrial environments.



  • Self-locking anti-rotation: The specialized nib eliminates the need for secondary locking tools, facilitating single-sided assembly and high-torque installations.



  • Flush profile surface: The unique countersunk cylindrical design reduces obstruction and eliminates snagging hazards on heavy machinery and equipment faces.



Material grades



Stainless steel DIN 792 fasteners are primarily manufactured using the following material classifications:



  • A2 stainless steel (SS304): The benchmark grade offering exceptional rust prevention, longevity, and structural reliability for standard industrial applications.



  • A4 stainless steel (SS316): Infused with molybdenum to provide elite defense against severe chloride pitting, making it ideal for marine or offshore engineering.



Dimensional standard specification



Screws adhere strictly to the dimensions defined by the DIN 792 Standard. They are optimized with 6g metric coarse threads for heavy-duty load bearing.



Dimensional data table (all measurements in mm)



Thread size (d)

Head diameter (dk)

Head height (k)

Nose length (t)

Nib width (f)

Min thread length (b)

M24

38

25

12.1

6.6

54

M30

48

30

15.6

6.6

66

M33

52

30

16.4

7.6

72

M36

58

35

18.2

8.6

78

M39

62

40

19.9

8.6

84

M42

68

40

22.6

8.6

90
